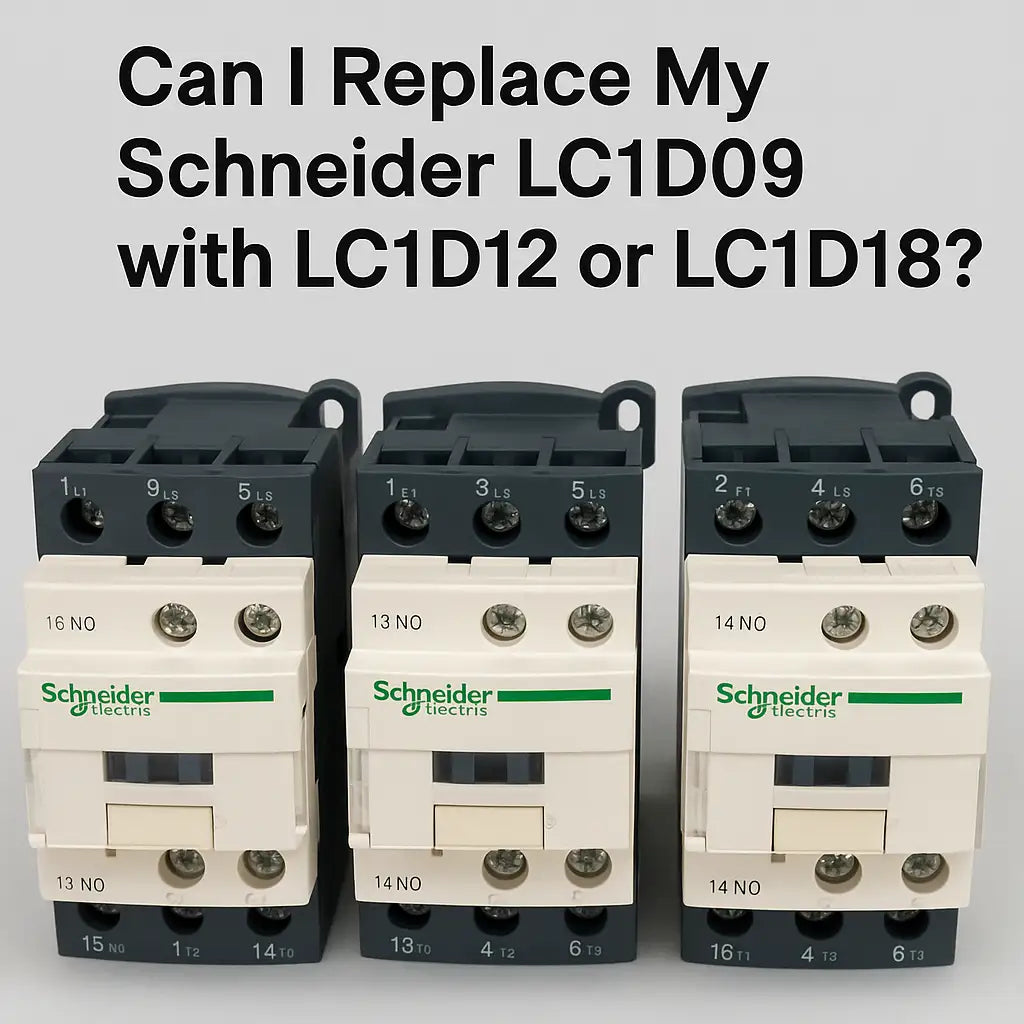

Can I Replace My Schneider LC1D09 with LC1D12 or LC1D18?

If you’re maintaining or upgrading a motor control system, you may be wondering whether you can replace your Schneider LC1D09 contactor with a LC1D12 or LC1D18. These three models belong to the Schneider TeSys Deca Series (Series TeSys D) — a trusted line of electromagnetic power relays designed for durability, precision, and reliable motor control in three-phase power systems.

⚙️ Understanding the Schneider TeSys Deca LC1D09

The LC1D09 (including model LC1D09 T7) is a 9 Amp (AC-3 Rating) contactor with a Power Rating of up to 4 kW (5 HP at 400V). It’s ideal for switching electric motors, lighting circuits, and resistive loads. Built to comply with UL 60947, IEC 60947, and CSA C22.2 standards, it’s engineered for global compatibility and safety.

Key Specifications (from LC1D09 Datasheet):

• Nominal Voltage: 220V AC (AC 220V)

• Operating Coil Voltage Options: 24V, 48V, 110V, 230V (AC and DC Voltage versions available)

• Current Rating: 9A

• Pole Number: 3-pole main contacts + optional auxiliary contacts

• Contact Type: Normally Open (NO) + Normally Closed (NC) configurations

• Screw Terminals: Standard for secure wiring

• DIN Rail Design: Snap-on mounting for easy installation

• UNSPSC: 39121529

• Part No.: LC1D09T7

• MPN: 31342150230

• UPC: 4014586768878

The LC1D09 has a mechanical life of over 10 million operations and an electrical life exceeding 1 million cycles under normal load. It’s used widely in Water Treatment Plants, HVAC, industrial automation panels, and pump systems.

🔄 Can You Replace LC1D09 with LC1D12 or LC1D18?

Yes — you can replace the LC1D09 with LC1D12 or LC1D18 contactors under certain conditions. These models share the same mounting dimensions, auxiliary contact block compatibility, and DIN rail footprint.

Here’s a comparison:

Model	AC-3 Rating	HP Ratings (400V)	Current Rating	Power Rating	Width	Coil Voltage Options
LC1D09	9A	4 kW / 5 HP	9A	4 kW	45 mm	24V–230V AC/DC
LC1D12	12A	5.5 kW / 7.5 HP	12A	5.5 kW	45 mm	24V–230V AC/DC
LC1D18	18A	7.5 kW / 10 HP	18A	7.5 kW	45 mm	24V–230V AC/DC

✅ Safe Replacement Rule: You can always replace a contactor with a higher-rated model (e.g., LC1D09 → LC1D12 or LC1D18), as long as the operating coil voltage, contact configuration, and mounting interface remain identical.

⚠️ Important: Always match the operating voltage of the relay coil (e.g., 230V AC, 110V AC, or 24V DC). Using the wrong coil voltage can cause high inrush consumption or failure to energize.

🧩 Accessory and Compatibility Notes

The TeSys Deca line allows easy integration with other Schneider and Square D components:

• Square D Overload Relays (e.g., LRD09, LRD12, LRD16)

• Square D Auxiliary Contacts (LADN22, LADN11, etc.)

• Auxiliary Contact Blocks: Snap-on design for side or front mounting

• Reversing Contactor Kits: Use two LC1D contactors with mechanical interlock

• GV2 Motor Protectors: Combine with LC1D contactors for complete motor starter assemblies

• Transient Voltage Surge Suppressors: Recommended to protect the coil from voltage spikes

⚡ Electrical and Mechanical Performance

The Schneider LC1D09 features a robust electromagnetic relay coil system designed for consistent performance across a wide range of voltage ratings. Its operating coil is optimized for both AC and DC control signals, ensuring quick response times and minimal heat buildup.

Performance Highlights:

• Electrical Life: 1,000,000+ operations

• Mechanical Life: 10,000,000+ operations

• Load Rating: Up to 9A (AC-3)

• Operating Temperature: -5°C to +60°C

• Contact Material: Silver alloy for extended durability

🧱 Construction and Dimensions

The LC1D09 contactor features a screw terminal connection, compact DIN rail design, and a 3-pole configurationsuitable for three-phase power systems. Its HANDLE SIZE is 3/4" x 2-5/8", and OVERALL LENGTH measures 5-7/8", ensuring a standardized footprint across the TeSys D range.

Each unit is labeled with its POINT SIZE 7 marking for easy identification during installation or maintenance.

🏷️ Ordering and Logistics Information

• SKU: 31342150230

• MPN: 31342150230

• UPC: 4014586768878

• Hazardous Material: None

• Shipping Method: USPS Ground Advantage available

• Payment Options: eBay Mastercard accepted

• List Price: Call for current pricing

• Delivery Times: Typically 2–5 business days (Call to Order)

• Customer Service: Contact our technical team for assistance with selection, stock, or compatibility questions.

🔍 Similar and Cross-Reference Part Numbers

• Similar Part No.: LC1D12, LC1D18, LC1E09, LC1K09

• Contactor Kit Options: LC1D09BL Contactor + LRD09 Overload Relay Kit

• Replacement Contact Blocks: LADN22, LADN11

🧭 Key Takeaways

• The LC1D09, LC1D12, and LC1D18 are interchangeable within the TeSys Deca Series when voltage and coil ratings match.

• Always verify coil voltage, AC-3 current rating, and HP rating before replacement.

• Use only genuine Schneider Electric components for maximum lifespan and warranty compliance.

• Pair with Square D auxiliary contacts, GV2 motor protectors, and overload relays for full motor starter assemblies.
